Use Ceramic Disc Filter with Gasket takes reticular structure and organic foam as carrier and put carrier into the thixotropic Al2O3 slurryadopt square to center correcting automatic extrusion process. Slurry evenly deposits in foam. After drying solidification, carrier will turn into final product under 1180℃.
Use Ceramic Disc Filter specially for aluminium precision casting.

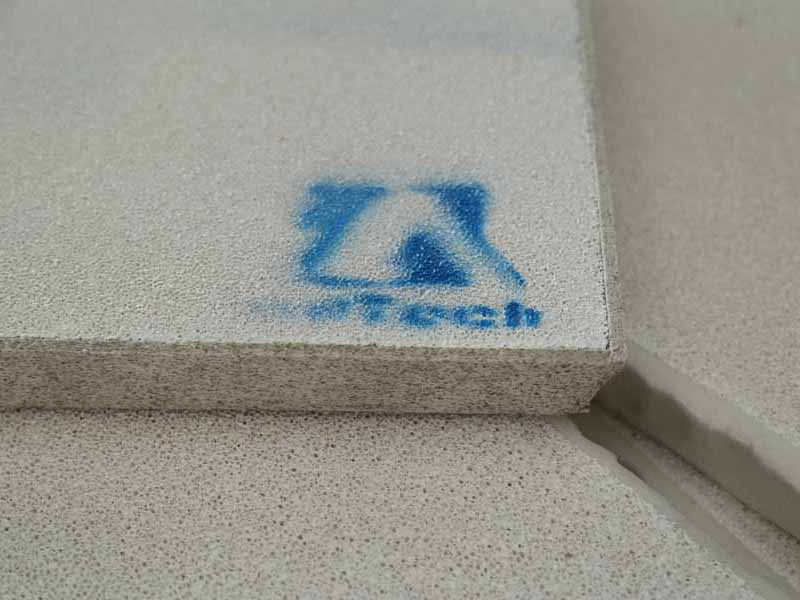

Use Ceramic Disc Filter

Ceramic Disc Filter is surrounded by sealing gasket, laying between filter and filter bowl box, to prevent molten aluminum leaking through interface.
Ceramic filter adopts sealing gasket in 3 different types, fiber paper material, fiber cotton material, expanding cotton material. Pls contact sales@adtechamm.com

Ceramic Disc Filter With Gasket is produced basing on carrier with solid reticular structure and combined organic foam pores.
The producing procedure is as below, put carrier into the thixotropic alumina slurry, adopt square to center correcting automatic extrusion process, so that slurry evenly deposits in foam skeleton of carrier, after drying solidification.
Then carrier will turn into final product by roasting formed under 1180 ℃ high temperature. Ceramic foam filter is installed in the filter bowl box to purify impurity in molten aluminium alloy, which helps to meet the requirement of production in high value-added, high-tech performance aluminium alloy precision casting, such as computer hard drive, PS baseboard for printing, canning materials, fan blades for turbojet engine, etc.
