30ppi 40ppi Alumina Filter prevents particulate impurities in the molten aluminum from entering the cast slab, affecting the quality of aluminum processed products.

According to the quality requirements of the finished castings, the flow rate of the molten aluminum, the total amount of filtered molten aluminum, the cleanliness of the molten aluminum itself, the type of filter box and the specifications of the foam filter plate can be selected correctly to obtain a satisfactory filtering effect.

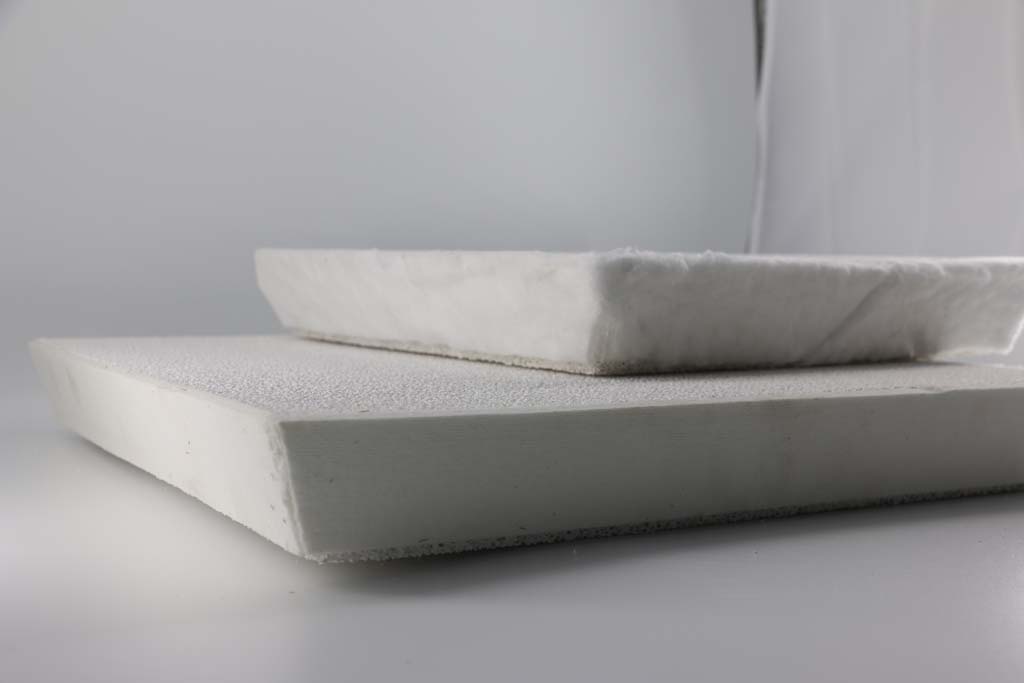

30ppi 40ppi Alumina Filter

Foam ceramic filter plates have been standardized and serialized production. According to the requirements of the quality and flow of the molten aluminum, with filter plates with different hole sizes (20-60ppi) and filter plate combinations, different filtering effects can be achieved.

A filter plate is reused in the filtrate more than 6 times, reducing the cost of consumables.
The lining of the filter box is similar to the degassing box, which is not infiltrated with aluminum, has good heat preservation, resistance to cold and heat shock, and has a long life.

30ppi 40ppi Alumina Filter product features:
Mechanical interception: remove large particles of mixed oxides
Filter cake function: filter small particles mixed with oxides
Deep adsorption: adsorption of small inclusions
Rectification: turbulent flow → laminar flow to prevent the formation of eddy currents
Avoid getting involved in air bubbles, alleviate impact and reduce sand falling

Ceramic foam filter Dimention
660x660x50(26″)
584x584x50(23″)
508x508x50(20″)
432x432x50(17″)
381x381x50(15″)
305x305x50(12″)
228x228x50(9″)
178x178x50(7″)

Ceramic foam fitler Pore Size (PPI): 10/20/30/40/50/60

There is an 8mm aluminum silicate liner around the Alumina Filter to seal the contact part of the filter plate and the filter box to ensure that there is no aluminum liquid bypass.

Ordinary aluminum casting usually uses 10-40ppi ceramic filter plates.
Aviation and high-quality aluminum materials usually use 30-60ppi ceramic filter plates.
Therefore, the 30ppi 40ppi Alumina Filter is the most commonly used ceramic foam filter in the aluminum casting industry.

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
